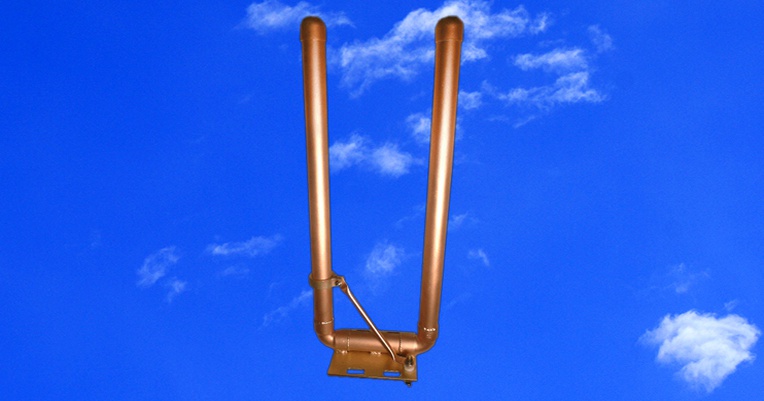

FMEH

Frequency Range: 88 – 108 MHz
Polarization :Horizontal
Power Rating: 500 Watts per bay
System Input: Type N Female
VSWR: 1.3:1 ± 150 kHz

Features

Features:

•BUILT WITH LOW POWER BROADCASTERS IN MIND

•POWER RATING
Each bay is rated at 500 watts with a maximum power of 2 kW for four bays.

•RUGGED CONSTRUCTION
The antenna system is fabricated from rugged, heavy wall copper, silicon bronze cast fittings, and naval brass. All joints are tig-welded.

•PRESSURIZATION NOT REQUIRED

•CUSTOM DIRECTIONAL PATTERNS
FM directional antennas based on the customer’s mounting structure, with FCC filing documentation, are available.

•WEATHERIZATION (OPTIONAL)
Radomes or electrical deicers available for areas that experience periods of heavy icing and/or snow conditions.

•STANDARD MOUNTING BRACKETS
Fits up to 4” tower leg or pipe. Supplied with antenna.

•WARRANTY
2-year limited warranty on defects and workmanship to the original purchaser.

Notes:
1. Power rating is based on 40 degrees C ambient. Degeneration occurs above 2000 ft.
2. Antenna weight, windload, aperture, and dimensions are based on mid-band operation (98.1 MHz).
3. Antennas with 3 or more bays come with input power divider.
4. Windload based on 50/33 psf.
5. SWR, Inc. maintains a continuous program of product improvement and therefore reserves the right to change specifications without notice.

Elevation Patterns

FM Elevation Full Wave Spaced

FM Elevation Half-Wave Spaced

FM Elevation 3/4-Wave Spaced

Download File

Please contact factory for custom elevation patterns.

Electrical and Mechanical Specifications

Full – Wave Spaced

Bays	Power Rating (watts)	Power Gain	dB Gain	Net. Weight (lbs)	Windload (lbs)
1	500	0.883	-0.539	15	35
2	1000	1.918	2.828	35	85
3	1500	2.991	4.758	50	120
4	2000	4.088	6.115	65	155
5	2000	5.19	7.152	80	190
6	2000	6.321	8.008	95	225
8	2000	8.622	9.356	110	260
10	2000	10.913	10.379	125	295

Half – Wave Spaced

Bays	Power Rating (watts)	Power Gain	dB Gain	Net. Weight (lbs)	Windload (lbs)
1	500	0.883	-0.539	15	35
2	1000	1.39	1.43	35	85
3	1500	2.025	3.064	50	120
4	2000	2.627	4.195	65	155
5	2000	3.245	5.112	80	190
6	2000	3.847	5.851	95	225
8	2000	5.057	7.039	110	260
10	2000	6.258	7.965	125	295

Please contact factory for other spacings.
